NiTi Closed Coil Springs, with eyelet. Pk 10
(exc. VAT)
*You can mix and match any combination of NiTi Closed Coil, Open Coil or Molar Distalising Springs to achieve the quantity discounts shown above.
Place your order before 4:00pm for UK next working day delivery.
Learn more
Free UK returns on any unopened products within 30 days of receipt.
Learn more
PRODUCT DESCRIPTION
Ideal for space closure, with a light continuous force throughout activation

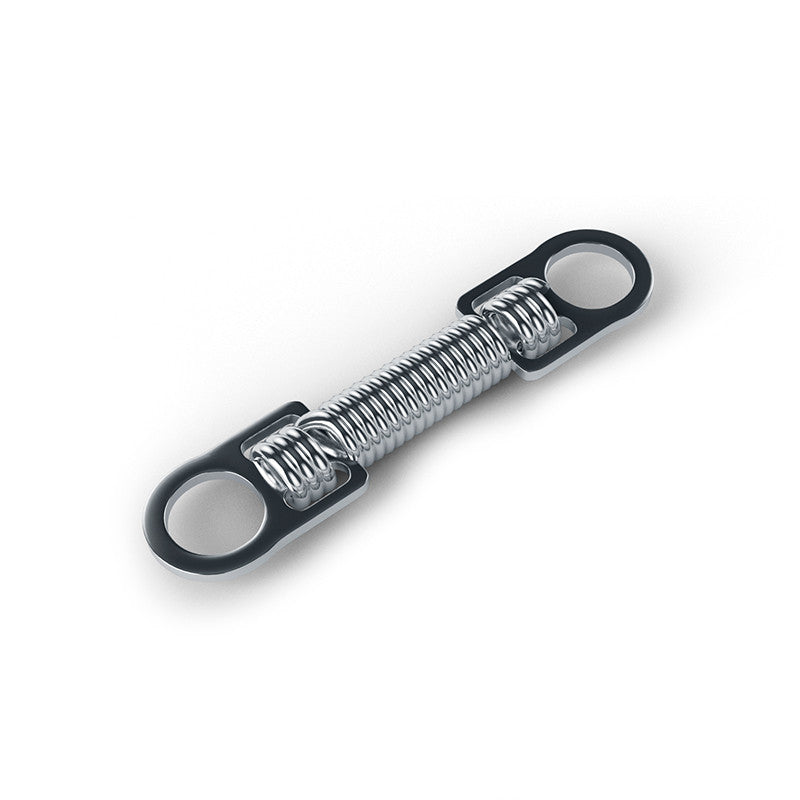

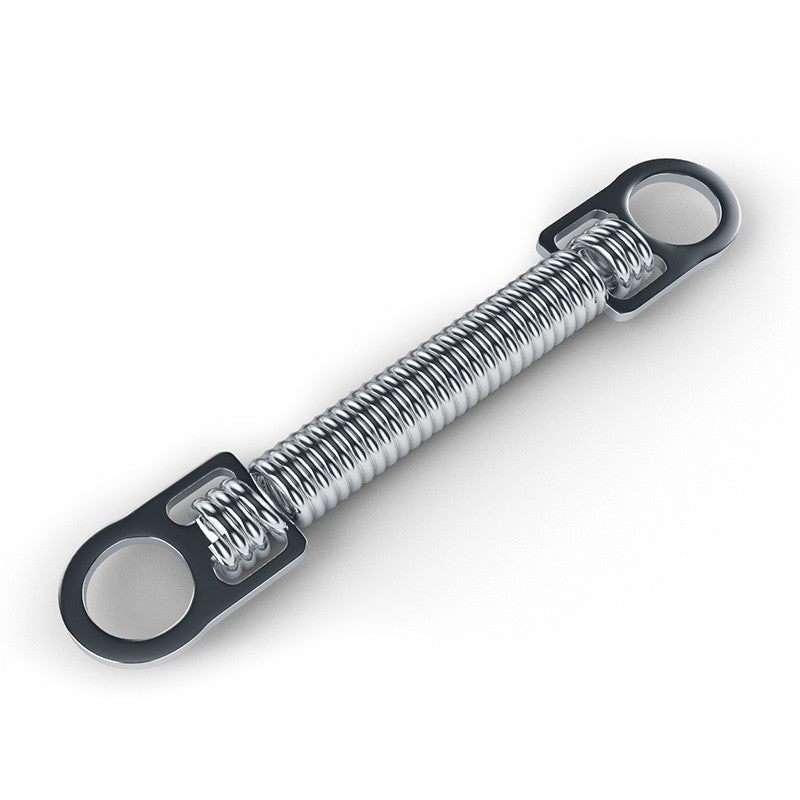

Nickel Titanium closed coil (tension) springs make closing spaces easier and provide a light, continuous force throughout activation. The super elastic springs are easily attached with the integrated stainless steel eyelets.
- Available in lengths of 9mm or 12mm
- Packs of 10
We do not recommend expanding the 9mm coil spring to more than 21mm total length from eyelet to eyelet, or twisting more than 180° (half a turn). The maximum recommended expansion for the 12mm coil spring is 36mm from eyelet to eyelet.
Any further expansion or twisting beyond these suggested limits may cause permanent deformation and affect force values.
Composition (% values in weight)
- Nickel: 55.0%
- Titanium: 45.0%
Dimensions (wire dia. x inner dia.)
- Light (150g) - .009" x .030"
- Medium (200g) - .010" x .030"
- Heavy (250g) - .012" x .030"
If you require safety data information, please contact us on:
01708 726 535
